The learner will calculate inverting amplifier gain and output voltage.

## The Op Amp Inverting Amplifier Configuration

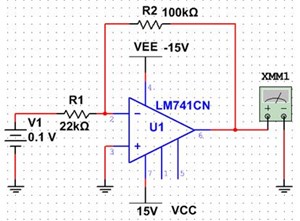

What is the gain for the inverting amplifier?

## Correct!

What is the gain for the inverting amplifier?

Explanation:
Av = -Rf / Ri
Next Question

## Incorrect

What is the gain for the inverting amplifier?

Explanation:
Av = -Rf / Ri
Next Question

## The Op Amp Inverting Amplifier Configuration

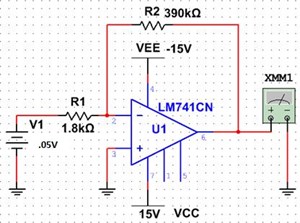

What is the output voltage?

## Correct!

What is the output voltage?

Explanation:
Vout = Vin * Av
Next Question

## Incorrect

What is the output voltage?

Explanation:
Vout = Vin * Av
Next Question

## The Op Amp Inverting Amplifier Configuration

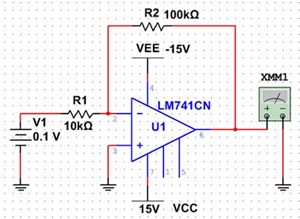

What is the inverting amplifier gain?

## Correct!

What is the inverting amplifier gain?

Explanation:

Av = -Rf / Ri

Next Question

## Incorrect

What is the inverting amplifier gain?

Explanation:

Av = -Rf / Ri

Next Question

## The Op Amp Inverting Amplifier Configuration

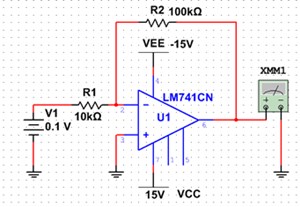

What is the output voltage?

## Correct!

What is the output voltage?

Explanation:

Vout = Vin * Av

Next Question

## Incorrect

What is the output voltage?

Explanation:

Vout = Vin * Av

Next Question

## The Op Amp Inverting Amplifier Configuration

What is the inverting amplifier gain?

## Correct!

What is the inverting amplifier gain?

Explanation:
Av = -Rf / Ri
Next Question

## Incorrect

What is the inverting amplifier gain?

Explanation:
Av = -Rf / Ri
Next Question

## The Op Amp Inverting Amplifier Configuration

What is the output voltage?

## Correct!

What is the output voltage?

Explanation:
Vout = Vin * Av
Next Question

## Incorrect

What is the output voltage?

Explanation:
Vout = Vin * Av
Next Question

## The Op Amp Inverting Amplifier Configuration

What is the inverting amplifier gain?

## Correct!

What is the inverting amplifier gain?

Explanation:
Av = Vout / Vin
Next Question

## Incorrect

What is the inverting amplifier gain?

Explanation:
Av = Vout / Vin
Next Question

## The Op Amp Inverting Amplifier Configuration

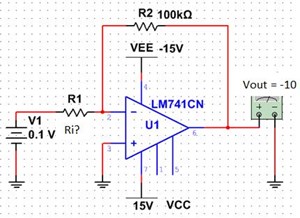

What is the Ri value for a gain of 100?

## Correct!

What is the Ri value for a gain of 100?

Explanation:
Ri = Rf / Av
Next Question

## Incorrect

What is the Ri value for a gain of 100?

Explanation:
Ri = Rf / Av
Next Question

## The Op Amp Inverting Amplifier Configuration

What is the bandwidth?

## Correct!

What is the bandwidth?

Explanation:

BW=1M/Av

Finish

## Incorrect

What is the bandwidth?

### 100kHz

Explanation:

BW=1M/Av

Finish
##### Question 1 of 10
The Op Amp Inverting Amplifier Configuration

# Score

You have answered 5 of 10 questions correctly.

50%
