Lathe Operations - Project
Thread Diameter Turning
 (Click here to close this window and return to the content.)

Lathe Operations - Project - Straight Turning Between Centers

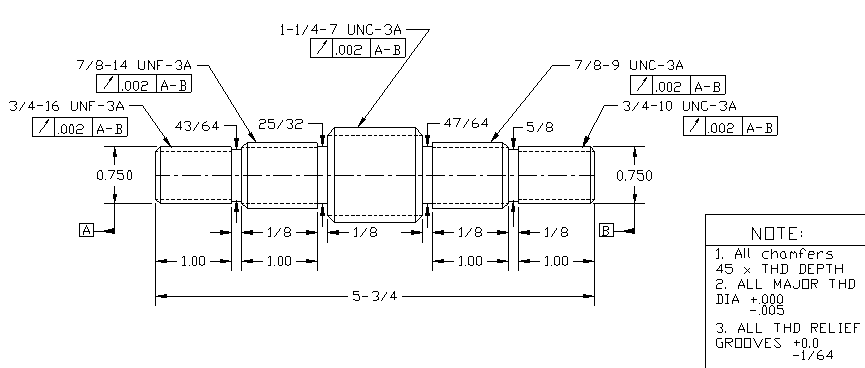

Part Specification

Tolerance Unless Specified

 Scale: NTS
Fractions 1/X:    +/- 1/64 Drawn Date
(2)  Place  X.XX   +/- 0.010 Description:  Thread Diameter Turning
(3)  Place X.XXX   +/- 0.005   Material:
Angles   +/-  30 Minutes Part No:  PSN1-3
