Lathe Operations - Project - Straight Diameters to Tighter Tolerances

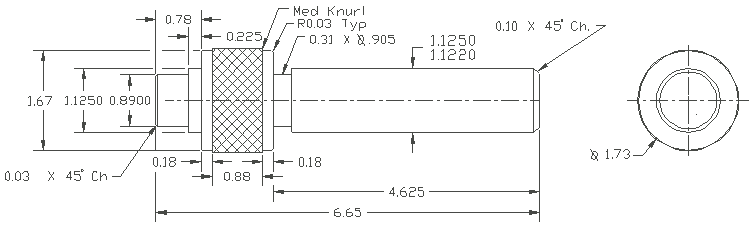

Part Specification


Note: 1. Break all sharps.

Tolerance Unless Specified

 Scale: NTS
(2)  Place  X.XX   +/- 0.010 Drawn Date
(3)  Place X.XXX   +/- 0.005 Description:  Screw Jack Screw
(4)  Place X.XXX   +/- 0.001   Material:  C.R.S
Angles   +/-  30 Minutes Part No:  PSN6-2
