Screw Threads and Fasteners

Many precision machined parts are useless until they are assembled into mechanical components. These assemblies require the use of many different types of fasteners. In this unit you will be introduced to different types of fasteners and their proper usage. One of the most fundamental tasks of the machinist is the use of fasteners. Threaded fasteners take on many different shapes and forms, but they all have one thing in common, the use of a thread. Although threads are used for adjustment purposes, measuring tool applications, and the transmission of power, the main use of a thread is as a fastening device.

Thread Terminology
Some of the more commonly used thread terms are:

Angle of Thread- The angle of the thread is the included angle between the sides of the thread (Figure 1). For example, the thread angle for Unified Screw Thread forms is 60 degrees.

Major Diameter-Commonly known as the outside diameter (Figure 2). On a straight screw thread, the major diameter is the largest diameter of the thread on the screw or nut.

Minor Diameter-Commonly known as the root diameter (Figure 2). On a straight screw thread, the minor diameter is the smallest diameter of the thread on the screw or nut.

Number of Threads-Refers to the number of threads per inch of length.

Pitch-The distance from a given point on one thread to a corresponding point on the next thread (Figure 1).

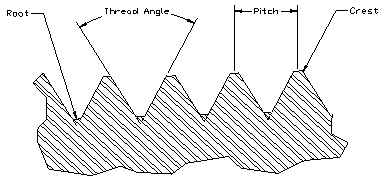

Figure 1  Major parts of a thread

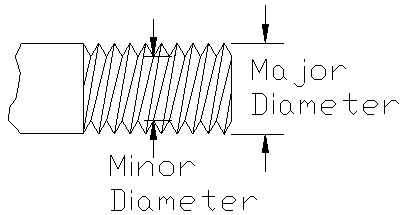

Figure 2
 Major parts of a thread

Lead-The distance a screw thread advances in one revolution. The lead and the pitch of a single lead thread are the same. On double lead threads, the lead is twice the pitch. A double lead thread has two start points.

Thread Forms

There are a great number of thread forms. In the later units of this course, you will examine these in more detail and you will have the opportunity to cut some threads. As far as fasteners are concerned, we will concentrate on the unified screw thread form. The unified thread form is an attempt to standardize thread forms in the United States, Canada, and Great Britain. Unified threads are divided into the following series:

  • UNC Unified National Coarse
  • UNF Unified National Fine
  • UNS Unified National Special

Unified coarse and unified fine refer to the number of threads per inch on fasteners. A specific diameter of bolt or nut will have a specific number of threads per inch of length. For example, a ¼-inch diameter unified national coarse bolt will have 20 threads per inch of length.  This bolt will be identified by the following specifications:


The ¼ is the major diameter and 20 refers to the number of threads per inch. A ¼ inch diameter bolt with a fine thread would be identified by the following specifications:


The ¼ is the major diameter and 28 refers to the number of threads per inch.
The Unified Special Series is identified the same way. A ¼ inch diameter UNS bolt may have 24 or 27 threads per inch.
You may wonder why there would be a need for UNC and UNF series threads. Here are some principal uses of coarse threads and fine thread.


This series, UNC, is the one most commonly used in the mass production of bolts, screws, nuts and other general fastening applications. It is also used for threading into lower tensile strength materials (bronze, brass, aluminum, and plastics) to obtain the best resistance to stripping of the internal thread. It is also used on quick assembly or disassembly, or if corrosion or slight damage is possible.


This series, UNF, when used on external threads has a greater tensile stress area than coarse threads of the same size. The fine series will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt. Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.

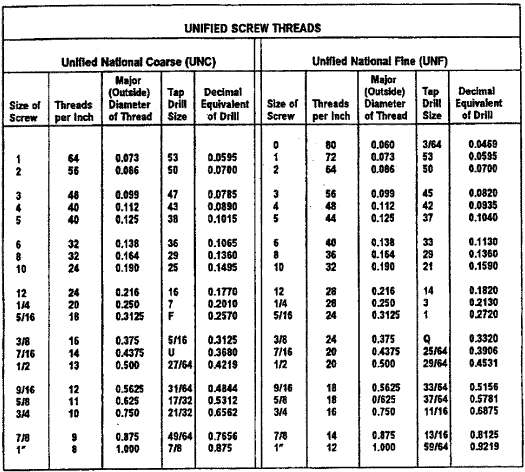

Figure 3  Unified screw thread chart.


Some thread applications can tolerate loose threads, while others require a tighter fit. An example of this would be the head of an engine. The head of your car or truck engine is held down by a threaded fastener called a stud. A stud is threaded on both ends. One end is threaded into the engine block. The other end uses a nut to tighten down the cylinder head. When the head is removed, you want the stud to remain in the engine block. This end requires a tighter fit than the end of the stud accepting the nut. If the fit on the nut is too tight, the stud will unscrew as the nut is removed.

Unified thread fits are classified as lA, 2A, 3A ... or 1B, 2B, 3B .... The A indicates an external thread. The B indicates an internal thread. The numbers indicate the class of fit. The lower the number the looser the fit and vice-versa. Class 2 fits are used on the largest percentage of threaded fasteners. The tighter the fit the closer the tolerance of the sizes of the thread and hence the more expensive to purchase. A typical notation of a unified thread form with fit tolerance would be:

¼-28 UNF 2A

In this particular case the class of fit would be a 2. The symbol A indicates an external thread.


With the importation and exportation of goods, especially in the automotive industry, metric threads have become the prevalent thread type on many kinds of equipment. The metric thread form is similar to the unified thread form in that it is based on a 60-degree thread angle. Metric thread series take the following form:

M10 X 1.5-6g

Where M is the major diameter in millimeters and the 1.5 is the pitch (distance from one thread to the next thread) in 1.5 millimeters, the 6 is the class of fit and the "g" symbolizes the external thread. This external thread would have a major diameter of 10 millimeters, a pitch of 1.5 millimeters, and a "medium" thread fit.


A general definition of a bolt is "an externally threaded fastener that is inserted through holes in an assembly." A bolt is tightened with a nut (figure 4).  A screw is an externally threaded fastener that is inserted into a threaded hole and is tightened by turning the head (Figure 4).

Figure 4  A screw is used in a threaded hole, while a bolt is used with a nut.

From these general definitions a bolt can become a screw or the reverse can be true. This depends on how they are used. Bolts and screws are the most common of threaded fasteners.

The strength of an assembly in large part depends on the diameter of the bolt or the thread engagement of the screw. Thread engagement is the distance a screw extends into the threaded hole. The minimum thread engagement should be a distance equal to the diameter used; preferably you would like to have 1-1/2 times the screw diameter, for it is easier to remove a broken stud than it is to drill and tap for a larger screw.

Machine bolts are made with hexagonal or square heads.

The body diameter, the diameter of the unthreaded portion of the bolt below the head, is typically slightly larger than the nominal or standard size of the bolt. A hole that is to accept a bolt must be drilled slightly larger than the body diameter.

Machine Screws

The machine screw is used for general assembly work. It is manufactured in both fine and coarse thread series and fitted with either a slotted or recessed head.

Machine screw sizes vary from No. 0(0.060) to ½ in(0.500) in diameter, and come in many different lengths (Figure 5).

A - Round head

B - Oval head

C - Flat head

D - Fillister head

E - Pan head

Figure 5  Machine screws

Carriage bolts are used to fasten wood and metal parts together. Carriage bolts have round heads with a square body under the head. The square part of the bolt, when pulled into the wood, keeps it from turning while you tighten the nut (Figure 6).
Figure 6
 A carriage bolt

 Cap screws are made with a variety of different head shapes and are used where precision bolts or screws are needed. Cap screws are manufactured to close tolerences and have a finished appearance. Cap screws can have flat heads, round heads, fillister heads, socket heads, and hex heads (Figure 7).
A-Flat Head B-Round Head C-Socket Head

Figure 7  Cap screws

Figure 8
 Knurled point set screw

Set screws are used to lock pulleys, collars, or shafts in place (Figure 8). Socket head set screws usually disappear below the surface of the part to be fastened. Socket head set screws may have hex socket heads or spline socket heads.

Set screws have several different points (Figure 9). The flat head set screws are used where minimal indentation to the part is needed and where frequent adjustments are made. They are also used to provide a jam screw effect when a second set screw is added to prevent vibrating loose. A dog point set screw is used to hold a collar to a shaft. Alignment is always maintained with a dog point set screw because the shaft is drilled with a hole of the same diameter as the dog point. A cup pointed set screw will give a very good slip resistant connection.

Cone Dog Flat Oval
Figure 9  Points of set screws

Bolt Grades and Torque Factors

In some instances bolts need to be fastened with just the right amount of pressure.  In these instances the manufacturer of certain products will recommend a certain clamping force be applied to a particular fastener. Insufficient torque will usually result in parts working loose and causing a malfunction due to misalignment. Over tightening, on the other hand, can cause stress or warpage, which also might disturb alignment on assemblies. The "armstrong" method of tightening fasteners can also cause broken castings, broken bolts, or stretching of the fastener.

Steel has excellent elasticity; the ability, like a spring to stretch and then snap back to its original shape. Any fastener must reach its limits of stretching in order to exert clamping force. But also like a spring, an over stretched fastener takes on set, loses its elasticity, and cannot snap back to its original shape. Proper torquing will prevent this condition.

A popping or snapping sound is sometimes heard during the final tightening of a fastener. This popping sound indicates that the fastener is undergoing set. When a new fastener is being used and the popping occurs, the remedy is to back it off and retighten to the proper torguing specifications. When an old fastener is being used, and you hear this popping, take the fastener out, and clean the bolt and the internal threads out completely. The safer, more economical thing to do is to replace the old fastener with a new one.

Cap Screw Grades

Just as critical as proper torquing is the selection of the right grade of fastener for the job. The grades of bolts, or cap screws in figure 10 are identified by the markings on the heads. The grade indicates the strength of the fastener. Use a manufacturer’s chart as a guide for the proper torque of fasteners.
Grade 2 Grade 5 Grade 8
Figure 10  Grades of fasteners


Nuts utilize a hexagonal or square head and are used with bolts with the same shaped head. They are available in different degrees of finish.

REGULAR is un-machined (except for the threads).

REGULAR SEMIFINISHED is machined on the bearing face to provide a straight , flat surface for the washer.

HEAVY SEMIFINISHED is the same in finish as the semi-finished; however, the body is thicker for greater strength.

CASTELLATED or SLOTTED NUTS have a milled slot across the flats so they can be locked in place using a cotter pin or wire.

ACORN NUTS are used when appearance is of the most importance or where projecting threads must be protected.

WING NUTS are used when frequent adjustments or removal are necessary (Figure 11).

Figure 11  Wing nut


Washers are used to distribute the clamping pressure over a larger area and to prevent marring. They can also be used to provide a larger bearing surface for bolt heads and nuts.

Lock Washers

A lock washer is used to prevent a bolt or nut from loosening under vibration. There are many different types of lock washers.  Some of the more common lock washers are pictured in Figure 12.
A-External B-Internal C-Split

Figure 12  Lock washers

Non-threaded Fastening Devices

Non-threaded fasteners make up a large group of fastening devices.

Dowel Pins

Dowel Pins are made of treated alloy steel and are used in assemblies where parts must be accurately positioned and held in absolute relation to one another (Figure 13). They assure perfect alignment and facilitate quicker disassembly and assembly of parts in exact relationships.

Figure 13  Dowel Pins.
A-Straight, B-Tapered, C-Roll, D-Grooved.

Cotter Pins

Cotter pins are fitted into holes that are drilled crosswise in shafts to prevent parts from slipping or turning off (Figure 14).

Figure 14  Cotter Pin.

Retaining Rings

Retaining rings are stamped rings, both internal and external, and are used to keep parts from slipping or sliding apart. While most retaining rings need a groove to seal them in position, some types are self locking and do not require the use of a recess.


A key is a small piece of metal imbedded partially in the shaft and partially in the hub to prevent rotation of a gear or pulley on a shaft. Here are some different types of keys.

SQUARE KEYS-The width is usually one-fourth of the shaft diameter. One half of the key is fitted into the shaft and one half is fitted into the hub (Figure 16).

GIB HEAD KEY-Except for the gib head, this key is identical to the square key. The gib head provides easy removal(Figure 16).

PRATT & WHITNEY KEY-The ends are rounded and this key is fitted into a slot on the shaft of the same shape (Figure 16).

WOODRUFF KEY-A woodruff key is semi-circular in shape and fits into a keyseat of the same shape. The top of the key fits into a keyway in the mating part (Figure 16).

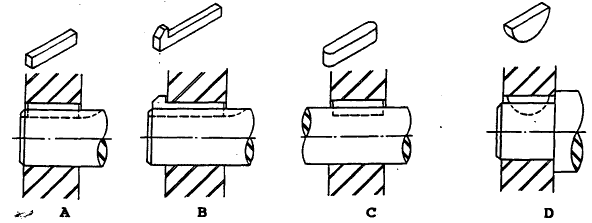

Figure 16  Keys. A-Square, B-Gib head, C-Pratt & Whitney, D-Woodruff.

Keyway Keyseat

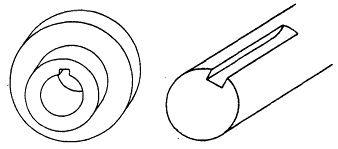

 Figure 17  A keyway is broached into the hub of the part. A keyseat is machined in the shaft.
