The learner will calculate circuit gain and output voltage for the Non-Inverting amplifier.

## The Op Amp Non-Inverting Amplifier Configuration

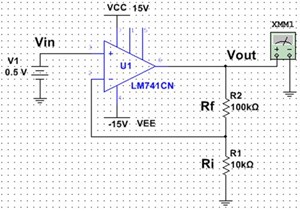

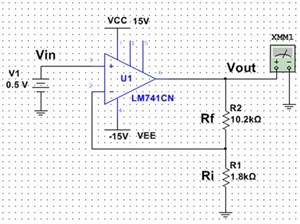

What is the non-inverting amplifier gain?

## Correct!

What is the non-inverting amplifier gain?

### 11

Explanation:

Av = (Rf / Ri) + 1

Next Question

## Incorrect

What is the non-inverting amplifier gain?

### 11

Explanation:

Av = (Rf / Ri) + 1

Next Question

## The Op Amp Non-Inverting Amplifier Configuration

What is the output voltage?

## Correct!

What is the output voltage?

Explanation:

Vout = Av * Vin

Next Question

## Incorrect

What is the output voltage?

Explanation:

Vout = Av * Vin

Next Question

## The Op Amp Non-Inverting Amplifier Configuration

What is the non-inverting amplifier gain?

## Correct!

What is the non-inverting amplifier gain?

### 40

Explanation:

Av = (Rf / Ri) + 1

Next Question

## Incorrect

What is the non-inverting amplifier gain?

### 40

Explanation:

Av = (Rf / Ri) + 1

Next Question

## The Op Amp Non-Inverting Amplifier Configuration

What is the output voltage?

## Correct!

What is the output voltage?

Explanation:
Vout = Av * Vin
Next Question

## Incorrect

What is the output voltage?

Explanation:
Vout = Av * Vin
Next Question

## The Op Amp Non-Inverting Amplifier Configuration

What is the non-inverting amplifier gain?

## Correct!

What is the non-inverting amplifier gain?

### 6.67

Explanation:

Av = (Rf / Ri) + 1

Next Question

## Incorrect

What is the non-inverting amplifier gain?

### 6.67

Explanation:

Av = (Rf / Ri) + 1

Next Question

## The Op Amp Non-Inverting Amplifier Configuration

What is the output voltage?

## Correct!

What is the output voltage?

Explanation:

Vout = Av * Vin

Next Question

## Incorrect

What is the output voltage?

Explanation:

Vout = Av * Vin

Next Question

## The Op Amp Non-Inverting Amplifier Configuration

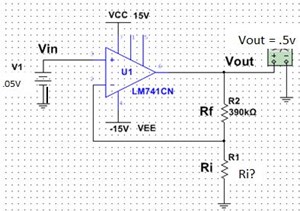

What is the inverting amplifier gain?

## Correct!

What is the inverting amplifier gain?

Explanation:
Av = Vout / Vin
Next Question

## Incorrect

What is the inverting amplifier gain?

Explanation:
Av = Vout / Vin
Next Question

## The Op Amp Non-Inverting Amplifier Configuration

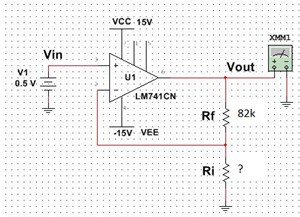

What is the Ri value for a gain of 10?

## Correct!

What is the Ri value for a gain of 10?

### 9.1k

Explanation:
Ri = Rf / (Av – 1)
Finish

## Incorrect

What is the Ri value for a gain of 10?

### 9.1k

Explanation:
Ri = Rf / (Av – 1)
Finish
##### Question 1 of 10
The Op Amp Non-Inverting Amplifier Configuration

# Score

You have answered 5 of 10 questions correctly.

50%
